Iscar

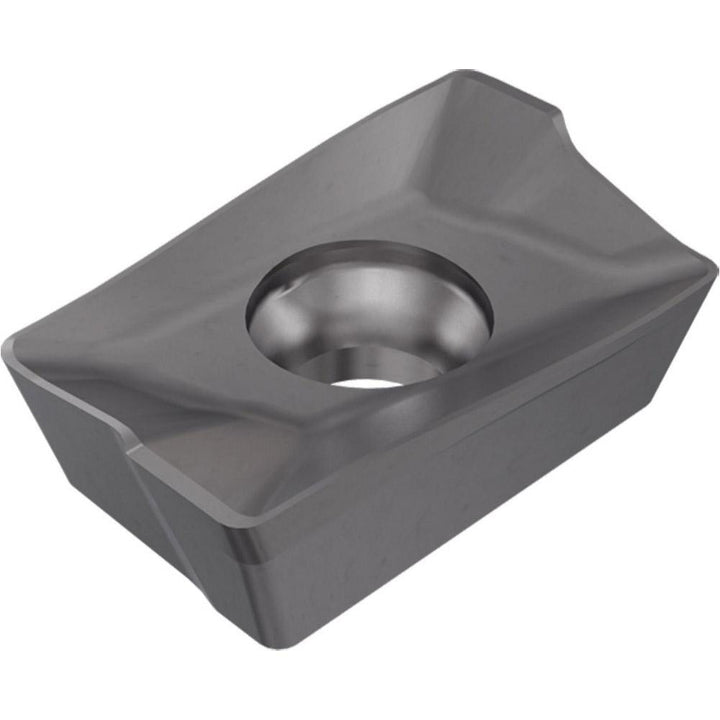

HM90 APKT 100304PDR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602963
MFR# 5602963ISO/ANSI# HM90 APKT 100304PDRCat# HM90 APKT 100304PDR IC928Series HELI2000
$18.66List $23.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5602963 is a HM90 APKT 100304PDR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHM90 APKT 100304PDR IC928
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.4040
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100304
Insert styleAPKT
Iso codeHM90 APKT 100304PDR
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 100304PDR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
