Iscar

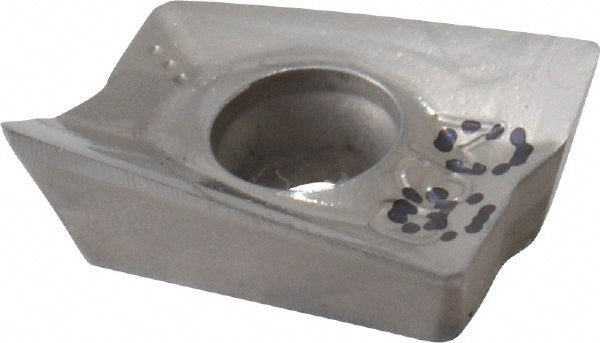

HM90 APCR 100304PDFR-P Solid Carbide Insert, Grade IC08 - Iscar 5602965
MFR# 5602965ISO/ANSI# HM90 APCR 100304PDFR-PCat# HM90 APCR 100304PDFR-P IC08Series HELI2000
$24.55List $30.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC08
MaterialSolid Carbide
Description
The Iscar 5602965 is a HM90 APCR 100304PDFR-P solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Ansi codeHM90 APCR 100304PDFR-P IC08
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.4010
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2570
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100304
Insert styleAPCR
Iso codeHM90 APCR 100304PDFR-P
Length0.4430
Length range0.4000 to 0.4500
Manufacturers catalog numberHM90 APCR 100304PDFR-P IC08
Manufacturer gradeIC08
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1520
Thickness range0.1500 to 0.1750
Width0.2570
