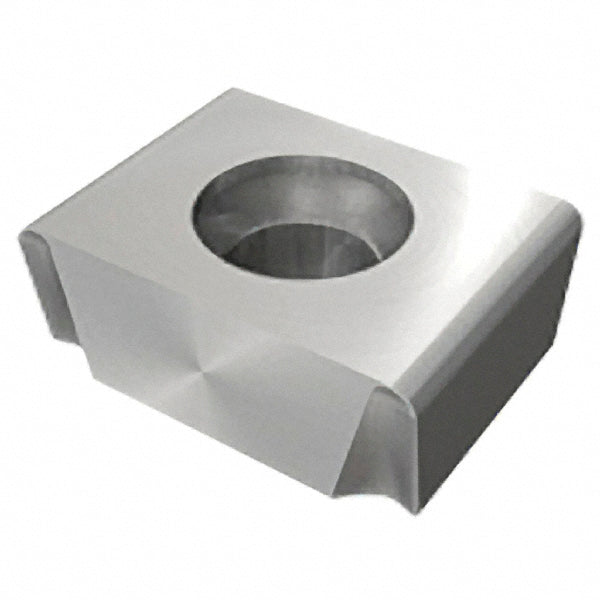

LNET 124804-TN Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602996

Iscar

LNET 124804-TN Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5602996

MFR# 5602996ISO/ANSI# LNET 124804-TNCat# LNET 124804-TN IC928Series TANGSLOT

$24.44List $31.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/16
ShapeButterfly
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5602996 is a LNET 124804-TN solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNET 124804-TN IC928
Chip breakerTN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityFDN; SDN
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in3/16
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size12
Insert size code124804
Insert styleLNET
Iso codeLNET 124804-TN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNET 124804-TN IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/8
Thickness range0.3500 to 0.5000
Width0.1870
