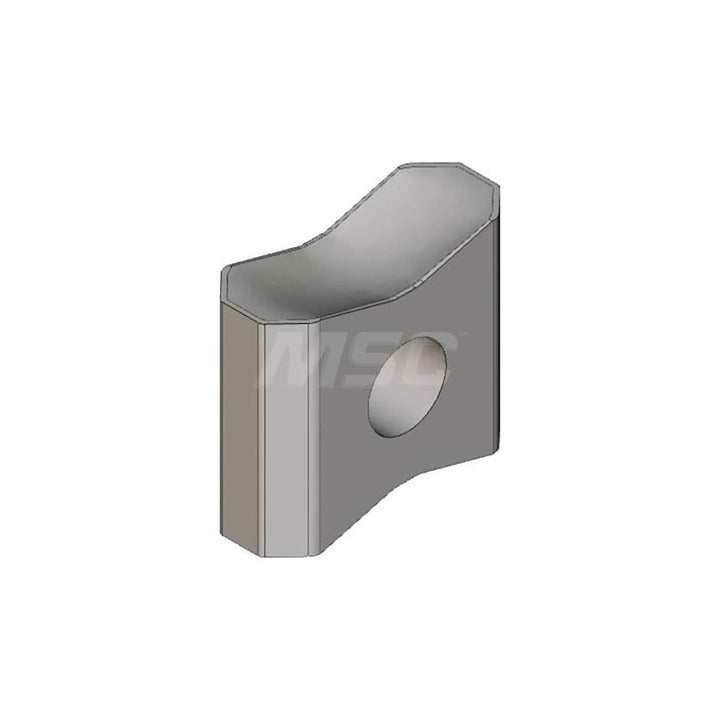

LNKX 150608ANTN MM Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603016

Iscar

LNKX 150608ANTN MM Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603016

MFR# 5603016ISO/ANSI# LNKX 150608ANTN MMCat# LNKX 150608ANTN MM IC910Series TANGMILL

$30.84List $39.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5603016 is a LNKX 150608ANTN MM solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNKX 150608ANTN MM IC910
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF45LN
Cutting edge effective length0.6024
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code150608
Insert styleLNKX
Iso codeLNKX 150608ANTN MM
Length0.6024
Length range0.6000 to 0.6500
Manufacturers catalog numberLNKX 150608ANTN MM IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.2950
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5080
Thickness range0.5000+
Width0.2360
