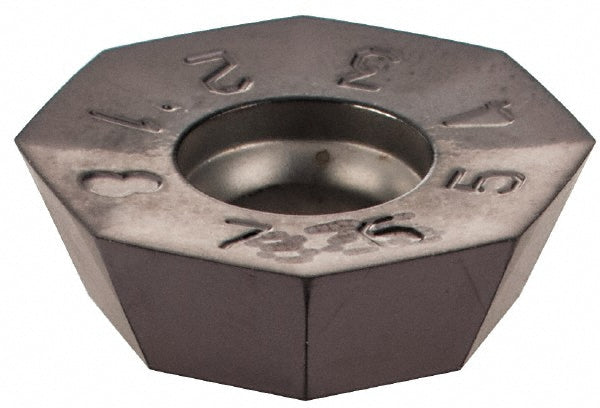

OECR 060405AER-P Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603084

Iscar

OECR 060405AER-P Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603084

MFR# 5603084ISO/ANSI# OECR 060405AER-PCat# OECR 060405AER-P IC928Series HELIOCTO

$28.97List $37.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603084 is a OECR 060405AER-P solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOECR 060405AER-P IC928
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.1460
Cutting edge styleSharp
Included angle degree135
Inscribed circle0.5689
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060405
Insert styleOECR
Iso codeOECR 060405AER-P
Length0.5689
Length range0.5000 to 0.6000
Manufacturers catalog numberOECR 060405AER-P IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.1460
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1930
Thickness range0.1850 to 0.2000
Width0.5689
