Iscar

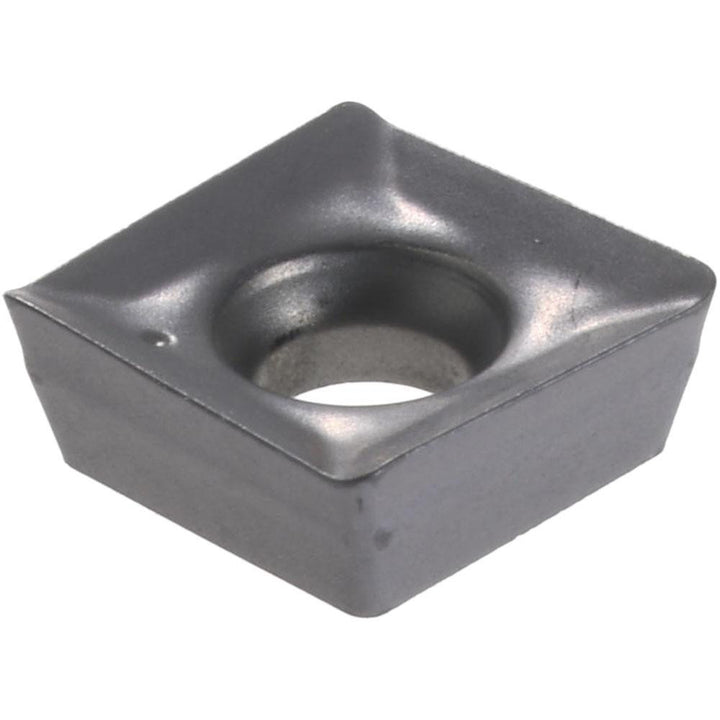

SOMT 060204-HQ Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603153
MFR# 5603153ISO/ANSI# SOMT 060204-HQCat# SOMT 060204-HQ IC908Series HELIQUAD
$17.18List $22.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603153 is a SOMT 060204-HQ solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeSOMT 060204-HQ IC908
Chip breakerHQ
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityE45X; E90X
Cutting edge effective length0.2268
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060204
Insert styleSOMT
Iso codeSOMT 060204-HQ
Length0.2425
Length range0.0000 to 0.3200
Manufacturers catalog numberSOMT 060204-HQ IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1570
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1010
Thickness range0.1000 to 0.1250
Width0.2425
