Iscar

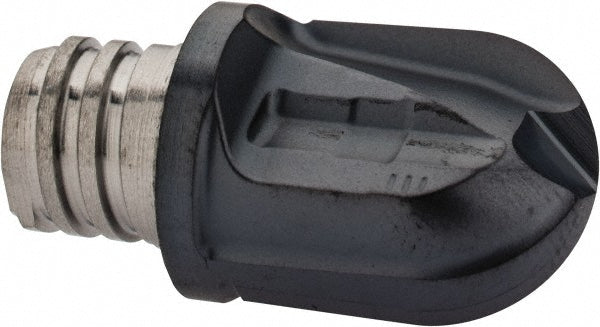

Carbide Insert, Grade IC908, TiAlN - Iscar 5603204
MFR# 5603204Series MM HCR
$82.80List $104.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5603204 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.5000
Cutting width0.5000in
Extension from holder in0.6460
Functional length0.6460
Included angle degree90
Insert handRight Hand
Insert size.500
Lead angle90
Length of cut0.5080in
Manufacturers catalog number5603204
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.5080
Milling tip full descriptionMM HCR.500-2T08
Milling tip styleMM HCR
Milling tip typeBall Nose
Number of flutes2
Overall length0.6460in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
