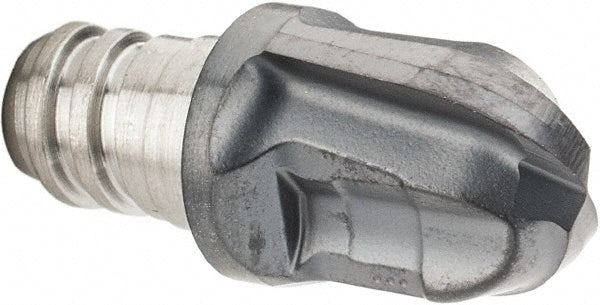

Carbide Insert, Grade IC908, TiAlN - Iscar 5603252

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5603252

MFR# 5603252Series MM HCR

$57.47List $73.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5603252 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3120
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3900
Functional length0.3900
Included angle degree90
Insert handRight Hand
Insert size.312
Lead angle90
Length of cut0.3100in
Manufacturers catalog number5603252
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3100
Milling tip full descriptionMM HCR.312-2T05
Milling tip styleMM HCR
Milling tip typeBall Nose
Number of flutes2
Overall length0.3900in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
