Iscar

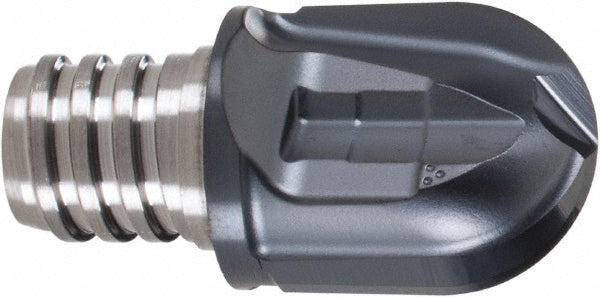

Carbide Insert, Grade IC908, TiAlN - Iscar 5603253
MFR# 5603253Series MM HCR
$131.27List $165.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5603253 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.6250
Cutting width0.6250in
Extension from holder in0.7500
Functional length0.7500
Included angle degree90
Insert handRight Hand
Insert size.625
Lead angle90
Length of cut0.6300in
Manufacturers catalog number5603253
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.6300
Milling tip full descriptionMM HCR.625-2T10
Milling tip styleMM HCR
Milling tip typeBall Nose
Number of flutes2
Overall length in3/4in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
