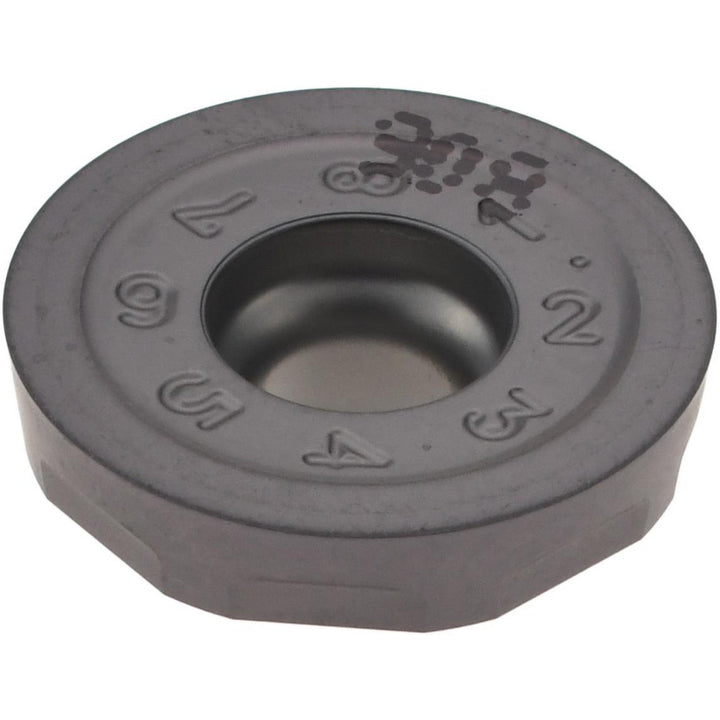

RCCW 1605 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603268

Iscar

RCCW 1605 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603268

MFR# 5603268ISO/ANSI# RCCW 1605Cat# RCCW 1605 IC908Series ROUNDMILL

$24.98List $32.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603268 is a RCCW 1605 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeRCCW 1605 IC908
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityFR; ER
Cutting edge effective length0.6299
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1605
Insert styleRCCW
Iso codeRCCW 1605
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCCW 1605 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1260
Thickness range0.1250 to 0.1500
Width0.6299
