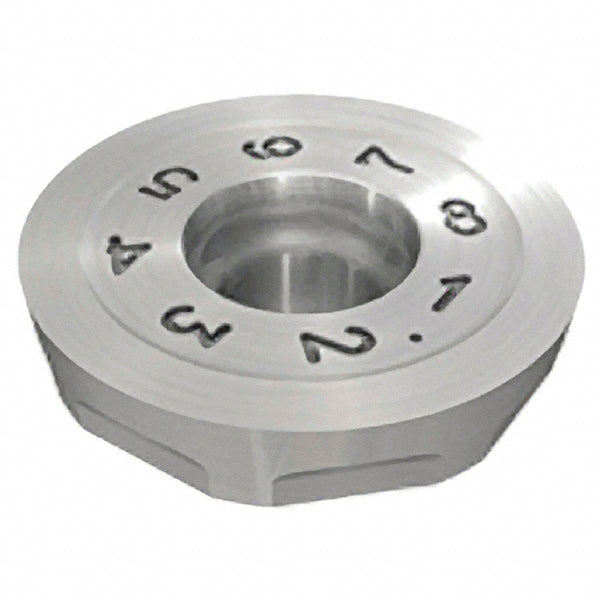

RCCW 2005 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603270

Iscar

RCCW 2005 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603270

MFR# 5603270ISO/ANSI# RCCW 2005Cat# RCCW 2005 IC908Series ROUNDMILL

$28.69List $36.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603270 is a RCCW 2005 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeRCCW 2005 IC908
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.3937
Cutter series compatibilityFR
Cutting edge effective length0.7874
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.7874
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size20
Insert size code2005
Insert styleRCCW
Iso codeRCCW 2005
Length0.7874
Length range0.7000 to 0.9000
Manufacturers catalog numberRCCW 2005 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.7874
