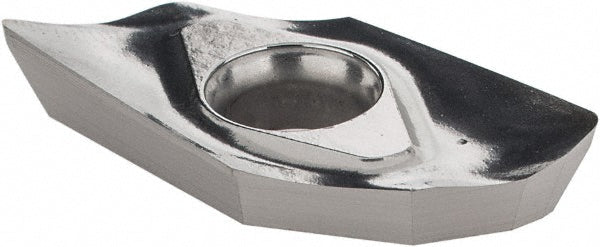

HM90 APCR 160508R-P Solid Carbide Insert, Grade IC28 - Iscar 5603286

Iscar

HM90 APCR 160508R-P Solid Carbide Insert, Grade IC28 - Iscar 5603286

MFR# 5603286ISO/ANSI# HM90 APCR 160508R-PCat# HM90 APCR 160508R-P IC28Series HELIALU

$38.73List $49.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5603286 is a HM90 APCR 160508R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 APCR 160508R-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityHM90-16
Cutting edge effective length0.6180
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.5040
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleAPCR
Iso codeHM90 APCR 160508R-P
Length1.0040
Length range1.0000+
Manufacturers catalog numberHM90 APCR 160508R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.6102
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1890
Thickness range0.1850 to 0.2000
Width0.5040
