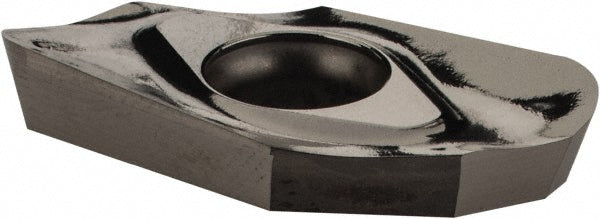

HM90 APCR 160532R-P Solid Carbide Insert, Grade IC28 - Iscar 5603290
MFR# 5603290ISO/ANSI# HM90 APCR 160532R-PCat# HM90 APCR 160532R-P IC28Series HELIALU
$39.41List $49.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5603290 is a HM90 APCR 160532R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeHM90 APCR 160532R-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.1260
Cutter series compatibilityHM90-16
Cutting edge effective length0.6060
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.5040
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160532
Insert styleAPCR
Iso codeHM90 APCR 160532R-P
Length0.9610
Length range0.9000 to 1.0000
Manufacturers catalog numberHM90 APCR 160532R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.6102
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1890
Thickness range0.1850 to 0.2000
Width0.5040
