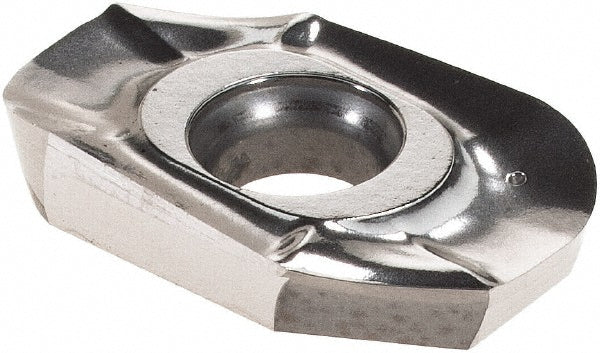

HM90 APCR 160550R-P Solid Carbide Insert, Grade IC28 - Iscar 5603292

Iscar

HM90 APCR 160550R-P Solid Carbide Insert, Grade IC28 - Iscar 5603292

MFR# 5603292ISO/ANSI# HM90 APCR 160550R-PCat# HM90 APCR 160550R-P IC28Series HELIALU

$38.73List $49.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5603292 is a HM90 APCR 160550R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 APCR 160550R-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.1969
Cutter series compatibilityHM90-16
Cutting edge effective length0.6300
Cutting edge styleHoned
Included angle degree85
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160550
Insert styleAPCR
Iso codeHM90 APCR 160550R-P
Length0.8940
Length range0.7000 to 0.9000
Manufacturers catalog numberHM90 APCR 160550R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1890
Thickness range0.1850 to 0.2000
Width in1/2
