Iscar

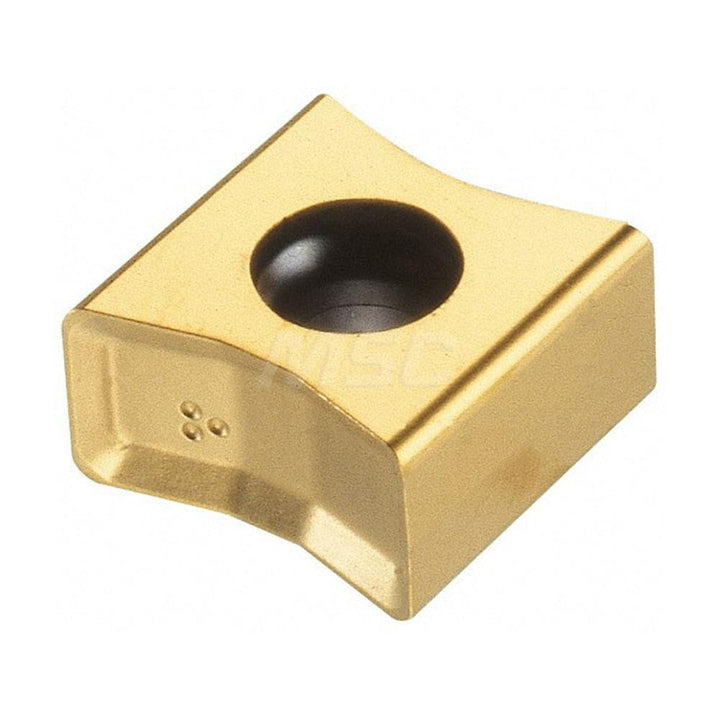

LNKX 1506PN-N MM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5603323
MFR# 5603323ISO/ANSI# LNKX 1506PN-N MMCat# LNKX 1506PN-N MM IC950Series TANGMILL
$31.38List $39.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC950
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603323 is a LNKX 1506PN-N MM solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.
Specifications
Ansi codeLNKX 1506PN-N MM IC950
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; SSB; F86; F90
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNKX
Iso codeLNKX 1506PN-N MM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberLNKX 1506PN-N MM IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.2760
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5460
Thickness range0.5000+
Width0.2360
