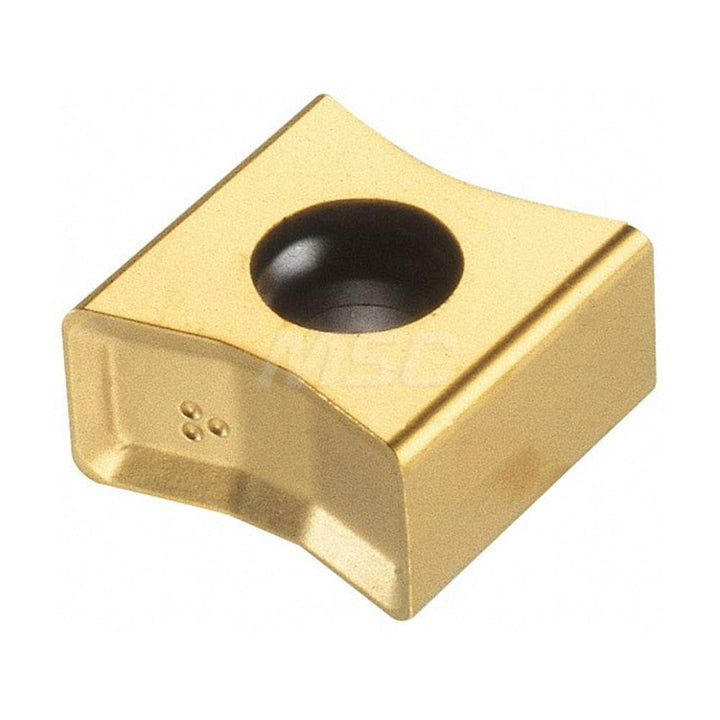

LNKX 1506PN-N MM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603324

Iscar

LNKX 1506PN-N MM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603324

MFR# 5603324ISO/ANSI# LNKX 1506PN-N MMCat# LNKX 1506PN-N MM IC328Series TANGMILL

$30.84List $39.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5603324 is a LNKX 1506PN-N MM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNKX 1506PN-N MM IC328
Chip breakerMM
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; SSB; F86; F90
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNKX
Iso codeLNKX 1506PN-N MM
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberLNKX 1506PN-N MM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2760
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5460
Thickness range0.5000+
Width0.2360
