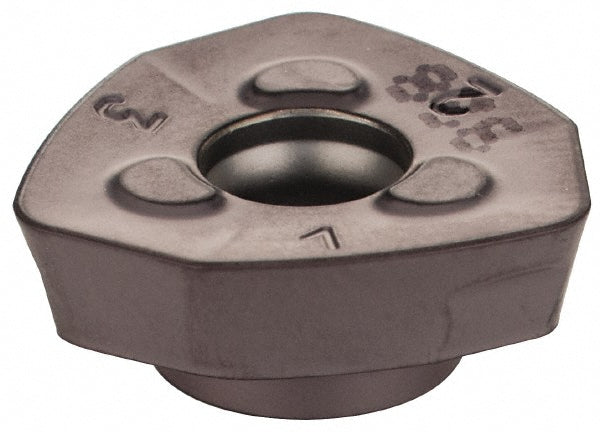

FF WOMT 09T320T Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603325

Iscar

FF WOMT 09T320T Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603325

MFR# 5603325ISO/ANSI# FF WOMT 09T320TCat# FF WOMT 09T320T IC928Series FEEDMILL

$21.16List $27.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603325 is a FF WOMT 09T320T solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeFF WOMT 09T320T IC928
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityFF FW; FF EW
Cutting edge effective length0.4173
Cutting edge styleHigh Feed Rate
Included angle degree80
Inscribed circle0.5709
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code09T320
Insert styleWOMT
Iso codeFF WOMT 09T320T
Length0.5709
Length range0.5000 to 0.6000
Manufacturers catalog numberFF WOMT 09T320T IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5709
