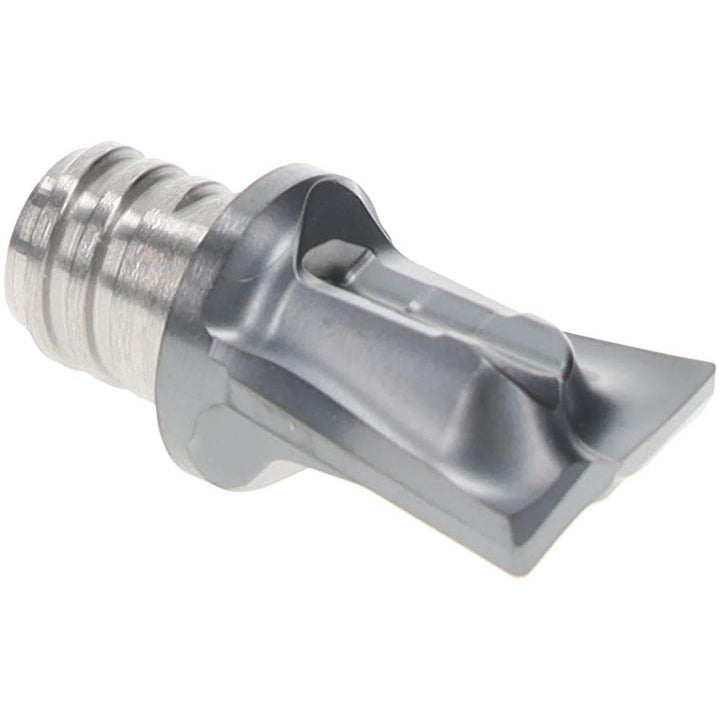

Carbide Insert, Grade IC908, TiAlN - Iscar 5603360

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5603360

MFR# 5603360Series MM HC

$59.11List $75.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5603360 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0160
Cutting width0.3750in
Extension from holder in0.4850
Functional length0.4850
Helix angle10
Included angle degree90
Insert handRight Hand
Insert size.375C38R016
Lead angle90
Length of cut0.3800in
Manufacturers catalog number5603360
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3800
Milling tip full descriptionMM HC.375C38R016-2T06
Milling tip styleMM HC
Milling tip typeSlotting Drill
Number of flutes2
Overall length0.4850in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
