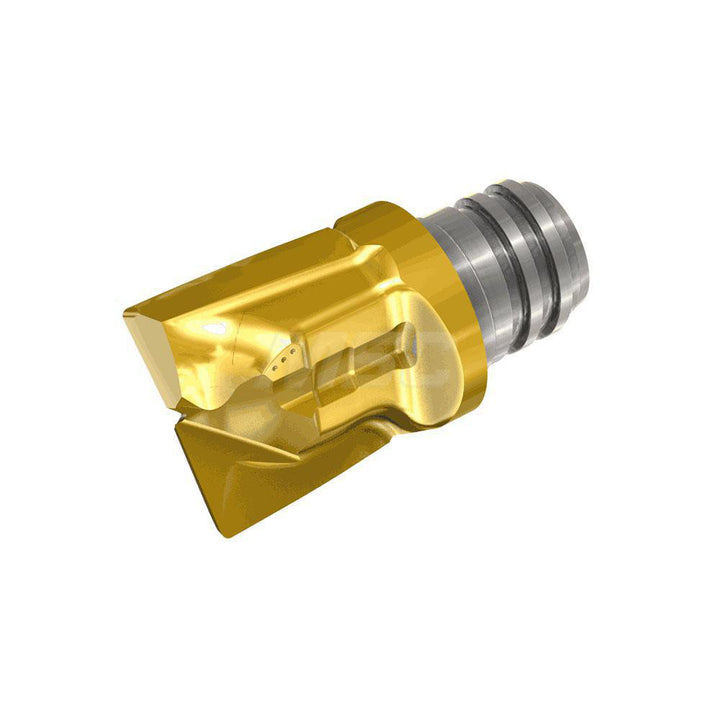

Carbide Insert, Grade IC908, TiAlN - Iscar 5603361

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5603361

MFR# 5603361Series MM HC

$73.95List $94.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5603361 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0160
Cutting diameter (mm)12.70
Cutting width0.5000in
Extension from holder in0.6004
Functional length0.6000
Helix angle10
Included angle degree90
Insert handRight Hand
Insert size.500C55R016
Lead angle90
Length of cut0.4330in
Manufacturers catalog number5603361
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4330
Milling tip full descriptionMM HC.500C55R016-2T08
Milling tip styleMM HC
Milling tip typeSlotting Drill
Number of flutes2
Overall length0.6000in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
