Iscar

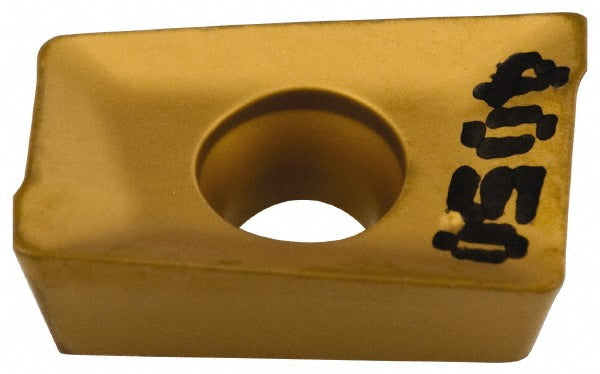

APKT 1003PDR-HM Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5603414
MFR# 5603414ISO/ANSI# APKT 1003PDR-HMCat# APKT 1003PDR-HM IC4050Series HELIMILL
$20.98List $26.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC4050
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5603414 is a APKT 1003PDR-HM solid carbide indexable insert, grade IC4050, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeAPKT 1003PDR-HM IC4050
Chip breakerHM
Coating finishTiCN
Coating processMTCVD
Corner radius0.0000
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR-HM
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR-HM IC4050
Manufacturer gradeIC4050
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2638
