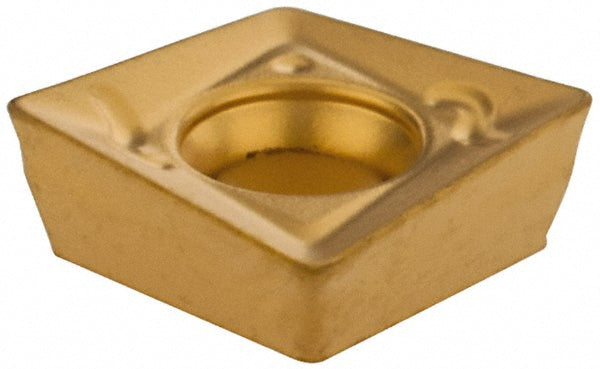

XOMT 060204T-HQ Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5603421

Iscar

XOMT 060204T-HQ Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5603421

MFR# 5603421ISO/ANSI# XOMT 060204T-HQCat# XOMT 060204T-HQ IC4050Series HELIQUAD

$16.55List $21.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC4050
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5603421 is a XOMT 060204T-HQ solid carbide indexable insert, grade IC4050, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeXOMT 060204T-HQ IC4050
Chip breakerHQ
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutter series compatibilityETS; FDN-CF4; FDN; SDN; E45X; E90X
Cutting edge effective length0.2268
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2430
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060204
Insert styleXOMT
Iso codeXOMT 060204T-HQ
Length0.2425
Length range0.0000 to 0.3200
Manufacturers catalog numberXOMT 060204T-HQ IC4050
Manufacturer gradeIC4050
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC1; C2; C5; C6
Maximum depth of cut0.2268
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1010
Thickness range0.1000 to 0.1250
Width0.2430
