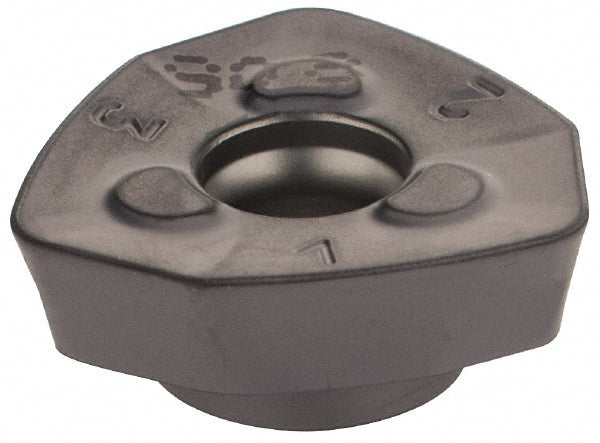

FF WOMT 09T320T Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603442
MFR# 5603442ISO/ANSI# FF WOMT 09T320TCat# FF WOMT 09T320T IC908Series FEEDMILL
$21.16List $27.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603442 is a FF WOMT 09T320T solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeFF WOMT 09T320T IC908
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityFF FW; FF EW
Cutting edge effective length0.4173
Cutting edge styleHigh Feed Rate
Included angle degree80
Inscribed circle0.5709
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code09T320
Insert styleWOMT
Iso codeFF WOMT 09T320T
Length0.5709
Length range0.5000 to 0.6000
Manufacturers catalog numberFF WOMT 09T320T IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5709
