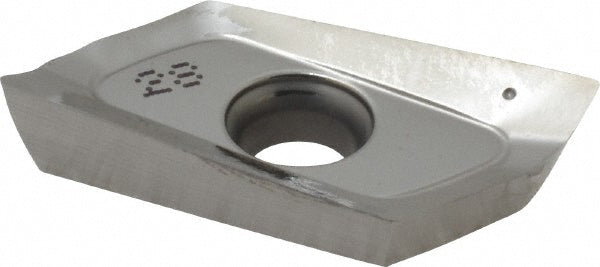

HM90 APCR 220605R-P Solid Carbide Insert, Grade IC28 - Iscar 5603464

Iscar

HM90 APCR 220605R-P Solid Carbide Insert, Grade IC28 - Iscar 5603464

MFR# 5603464ISO/ANSI# HM90 APCR 220605R-PCat# HM90 APCR 220605R-P IC28Series HELIALU

$60.35List $77.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC35/64
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5603464 is a HM90 APCR 220605R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 APCR 220605R-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHM90-22
Cutting edge effective length0.8700
Cutting edge styleHoned
Included angle degree85
Inscribed circle in35/64
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220605
Insert styleAPCR
Iso codeHM90 APCR 220605R-P
Length1.2010
Length range1.0000+
Manufacturers catalog numberHM90 APCR 220605R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.8660
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2720
Thickness range0.2500 to 0.3500
Width in35/64
