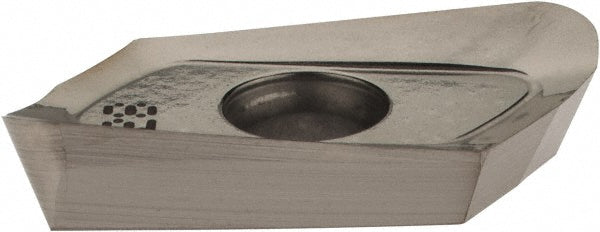

HM90 APCR 220632R-P Solid Carbide Insert, Grade IC28 - Iscar 5603467

Iscar

HM90 APCR 220632R-P Solid Carbide Insert, Grade IC28 - Iscar 5603467

MFR# 5603467ISO/ANSI# HM90 APCR 220632R-PCat# HM90 APCR 220632R-P IC28Series HELIALU

$60.35List $77.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5603467 is a HM90 APCR 220632R-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 APCR 220632R-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.1260
Cutter series compatibilityHM90-22
Cutting edge effective length0.8580
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.5400
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220632
Insert styleAPCR
Iso codeHM90 APCR 220632R-P
Length1.1570
Length range1.0000+
Manufacturers catalog numberHM90 APCR 220632R-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.8660
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2600
Thickness range0.2500 to 0.3500
Width0.5400
