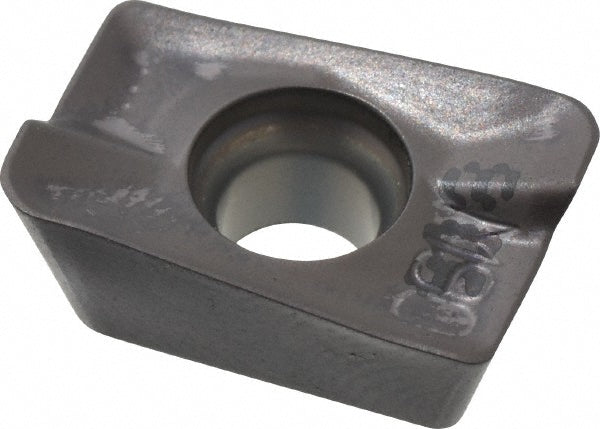

HM90 ADKT 150516PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603474
MFR# 5603474ISO/ANSI# HM90 ADKT 150516PDRCat# HM90 ADKT 150516PDR IC908Series HELI2000
$23.74List $30.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603474 is a HM90 ADKT 150516PDR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHM90 ADKT 150516PDR IC908
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityHM90-15
Cutting edge effective length0.5590
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3800
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150516
Insert styleADKT
Iso codeHM90 ADKT 150516PDR
Length0.6140
Length range0.6000 to 0.6500
Manufacturers catalog numberHM90 ADKT 150516PDR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2330
Thickness range0.2200 to 0.2350
Width0.3800
