Iscar

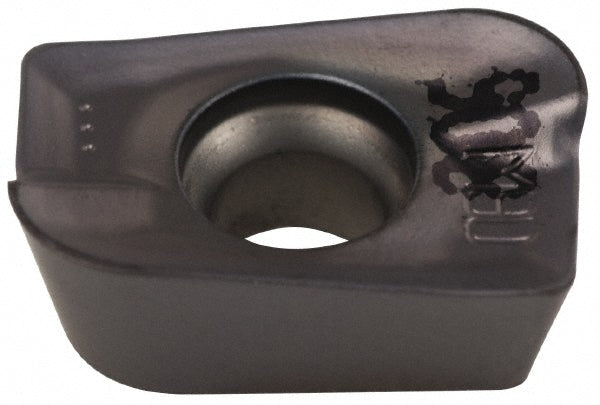

HM90 ADKT 150532PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603477
MFR# 5603477ISO/ANSI# HM90 ADKT 150532PDRCat# HM90 ADKT 150532PDR IC908Series HELI2000
$23.74List $30.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603477 is a HM90 ADKT 150532PDR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHM90 ADKT 150532PDR IC908
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityHM90-15
Cutting edge effective length0.5510
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3800
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150532
Insert styleADKT
Iso codeHM90 ADKT 150532PDR
Length0.5980
Length range0.5000 to 0.6000
Manufacturers catalog numberHM90 ADKT 150532PDR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.3800
