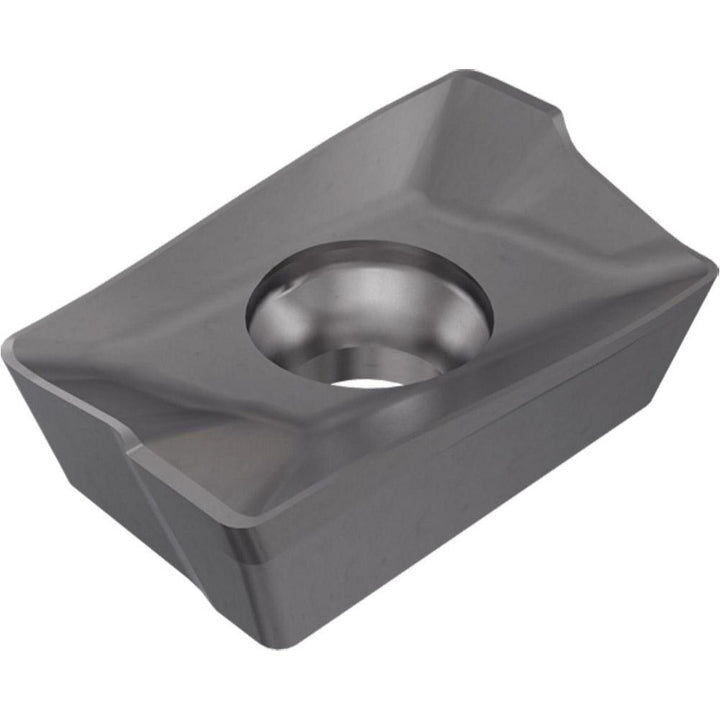

HM90 APKT 100312PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603492

Iscar

HM90 APKT 100312PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603492

MFR# 5603492ISO/ANSI# HM90 APKT 100312PDRCat# HM90 APKT 100312PDR IC908Series HELI2000

$18.99List $23.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603492 is a HM90 APKT 100312PDR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHM90 APKT 100312PDR IC908
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.4050
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100312
Insert styleAPKT
Iso codeHM90 APKT 100312PDR
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 100312PDR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3620
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
