Iscar

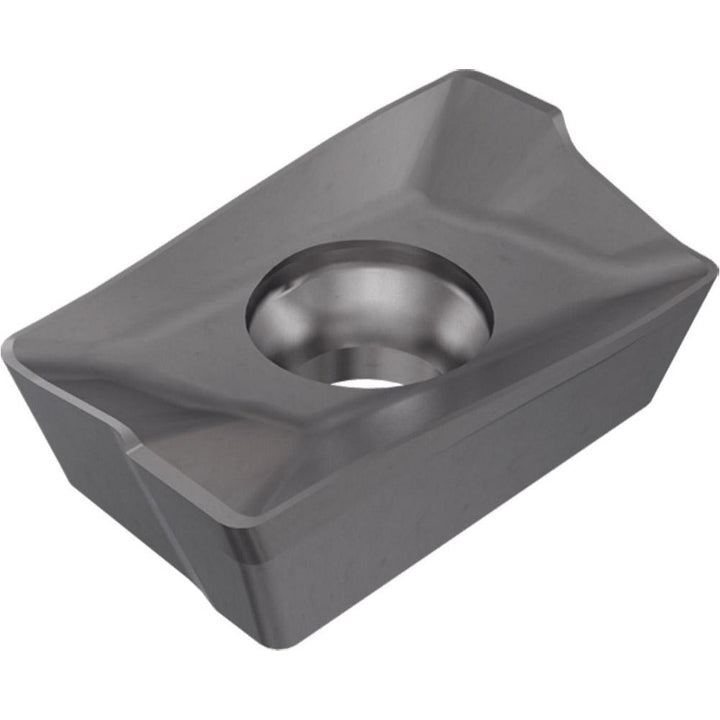

HM90 APKT 100330PDR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603496
MFR# 5603496ISO/ANSI# HM90 APKT 100330PDRCat# HM90 APKT 100330PDR IC328Series HELI2000
$18.99List $23.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5603496 is a HM90 APKT 100330PDR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHM90 APKT 100330PDR IC328
Chip breakerPDR
Coating finishTiCN
Coating processPVD
Corner radius0.1181
Cutter series compatibilityHM90-10
Cutting edge effective length0.3870
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100330
Insert styleAPKT
Iso codeHM90 APKT 100330PDR
Length0.4090
Length range0.4000 to 0.4500
Manufacturers catalog numberHM90 APKT 100330PDR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3620
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
