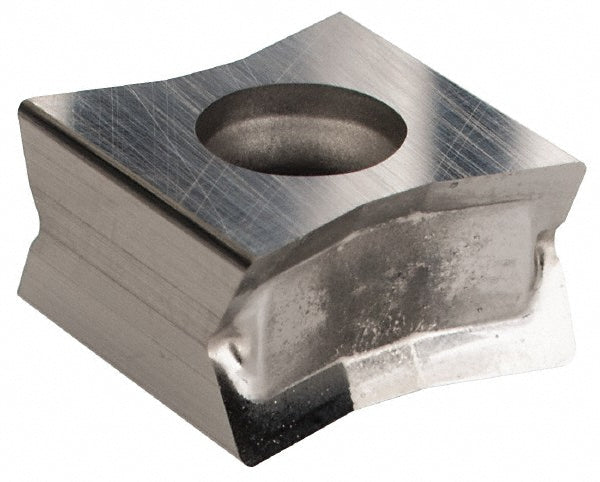

LNAR 1106 PN-N-P Solid Carbide Insert, Grade IC07 - Iscar 5603507

Iscar

LNAR 1106 PN-N-P Solid Carbide Insert, Grade IC07 - Iscar 5603507

MFR# 5603507ISO/ANSI# LNAR 1106 PN-N-PCat# LNAR 1106 PN-N-P IC07Series TANGMILL

$27.26List $34.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC07
MaterialSolid Carbide

Description

The Iscar 5603507 is a LNAR 1106 PN-N-P solid carbide indexable insert, grade IC07. Suited for stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeLNAR 1106 PN-N-P IC07
Chip breakerPN
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityFDN; SDN; F90LN
Cutting edge effective length0.1970
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNAR
Iso codeLNAR 1106 PN-N-P
Length0.4394
Length range0.4000 to 0.4500
Manufacturers catalog numberLNAR 1106 PN-N-P IC07
Manufacturer gradeIC07
Material applicationStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Material gradeSubmicron
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness in27/64
Thickness range0.3500 to 0.5000
Width0.2360
