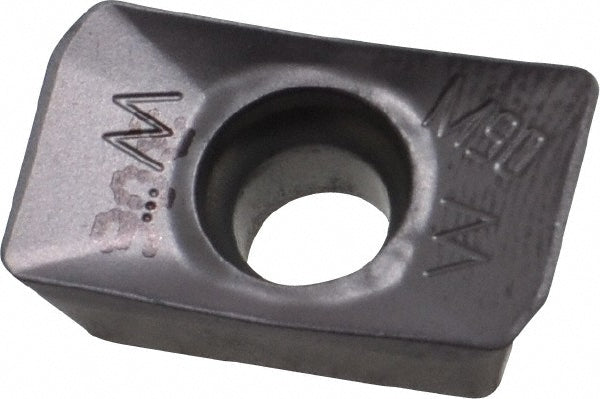

HM90 ADKT 1505PD-W Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5603517
MFR# 5603517ISO/ANSI# HM90 ADKT 1505PD-WCat# HM90 ADKT 1505PD-W IC908Series HELI2000
$25.22List $32.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603517 is a HM90 ADKT 1505PD-W solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHM90 ADKT 1505PD-W IC908
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.5910
Cutting edge styleWiper
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeHM90 ADKT 1505PD-W
Length0.6590
Length range0.6500 to 0.7000
Manufacturers catalog numberHM90 ADKT 1505PD-W IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.5910
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width in3/8
