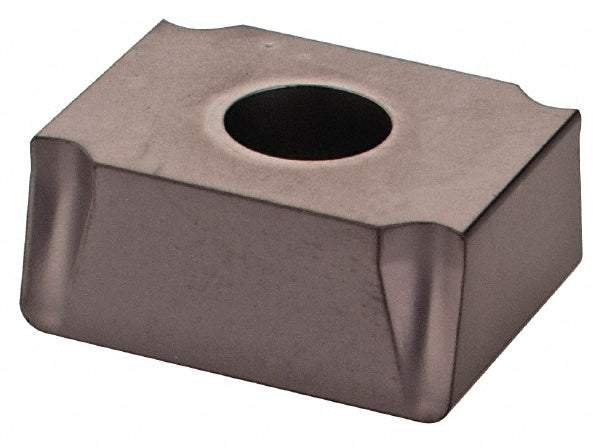

LNET 125508-TN Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603559

Iscar

LNET 125508-TN Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603559

MFR# 5603559ISO/ANSI# LNET 125508-TNCat# LNET 125508-TN IC928Series TANGSLOT

$24.91List $31.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603559 is a LNET 125508-TN solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNET 125508-TN IC928
Chip breakerTN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size12
Insert size code125508
Insert styleLNET
Iso codeLNET 125508-TN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNET 125508-TN IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/8
Thickness range0.3500 to 0.5000
Width in3/8
