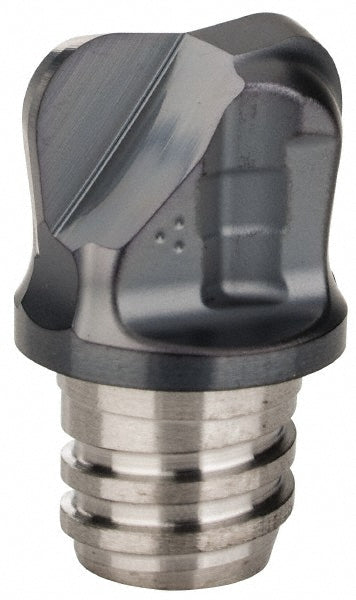

Carbide Insert, Grade IC908, TiAlN - Iscar 5603583

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5603583

MFR# 5603583Series MM HT

$78.40List $100.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5603583 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1181
Cutting diameter0.4720
Cutting width0.4720in
Extension from holder in0.4370
Functional length0.4370
Included angle degree83
Insert handRight Hand
Insert size120N06R3.0
Lead angle97
Length of cut0.2170in
Manufacturers catalog number5603583
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2170
Milling tip full descriptionMM HT120N06R3.0-2T08
Milling tip styleMM HT
Milling tip typeToroidal
Number of flutes2
Overall length0.4370in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
