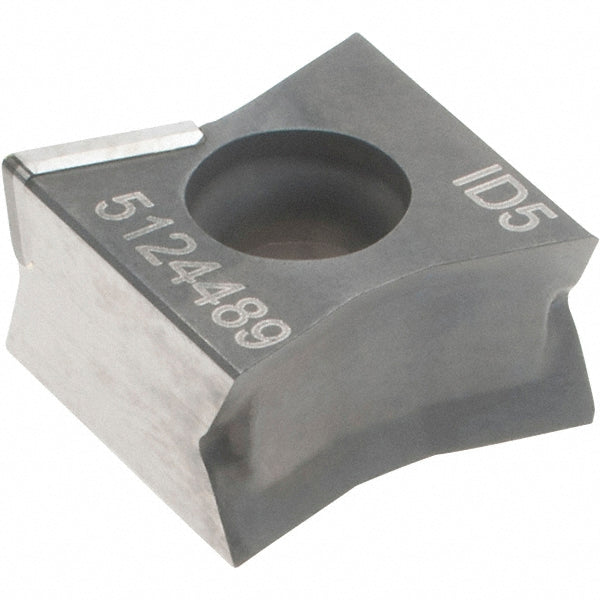

LNAR 110604PN-R-S PCD (Polycrystalline Diamond) Insert, Grade ID5 - Iscar 5603616
MFR# 5603616ISO/ANSI# LNAR 110604PN-R-SCat# LNAR 110604PN-R-S ID5Series TANGMILL
$145.46List $147.60
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeID5
MaterialPCD (Polycrystalline Diamond)
Description
The Iscar 5603616 is a LNAR 110604PN-R-S pcd (polycrystalline diamond) indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Ansi codeLNAR 110604PN-R-S ID5
Chip breakerS
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityF90LN
Cutting edge effective length0.1970
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialPCD (Polycrystalline Diamond)
Insert shapeButterfly
Insert size11
Insert size code110604
Insert styleLNAR
Iso codeLNAR 110604PN-R-S
Length in7/16
Length range0.4000 to 0.4500
Manufacturers catalog numberLNAR 110604PN-R-S ID5
Manufacturer gradeID5
Material applicationNon-Ferrous Metal
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle18
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4240
Thickness range0.3500 to 0.5000
Width0.2360
