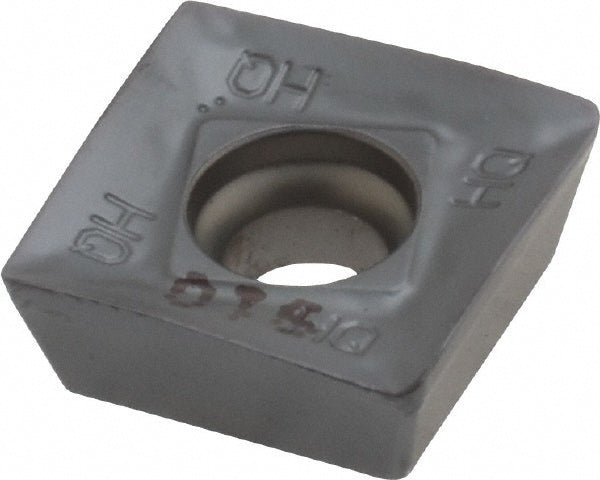

SDMT 1205PDR-HQ-M Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603672

Iscar

SDMT 1205PDR-HQ-M Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603672

MFR# 5603672ISO/ANSI# SDMT 1205PDR-HQ-MCat# SDMT 1205PDR-HQ-M IC910Series HELIQUAD

$18.35List $23.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5603672 is a SDMT 1205PDR-HQ-M solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeSDMT 1205PDR-HQ-M IC910
Chip breakerHQ
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySDK; F90SD-12
Cutting edge effective length0.4685
Cutting edge styleHelical
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSDMT
Iso codeSDMT 1205PDR-HQ-M
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDMT 1205PDR-HQ-M IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width in1/2
