SDMT 1606PDR-HQ-M Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603688

Iscar

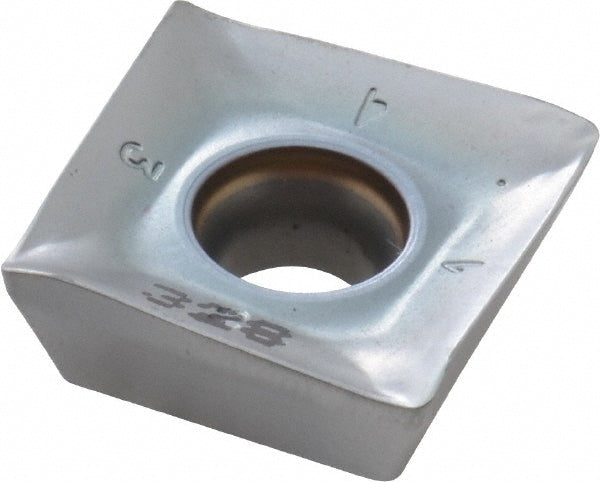

SDMT 1606PDR-HQ-M Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603688

MFR# 5603688ISO/ANSI# SDMT 1606PDR-HQ-MCat# SDMT 1606PDR-HQ-M IC328Series HELIQUAD

$29.98List $38.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5603688 is a SDMT 1606PDR-HQ-M solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSDMT 1606PDR-HQ-M IC328
Chip breakerHQ
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge effective length0.6142
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.6460
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code1606
Insert styleSDMT
Iso codeSDMT 1606PDR-HQ-M
Length0.6457
Length range0.6000 to 0.6500
Manufacturers catalog numberSDMT 1606PDR-HQ-M IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.6142
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2560
Thickness range0.2500 to 0.3500
Width0.6457
