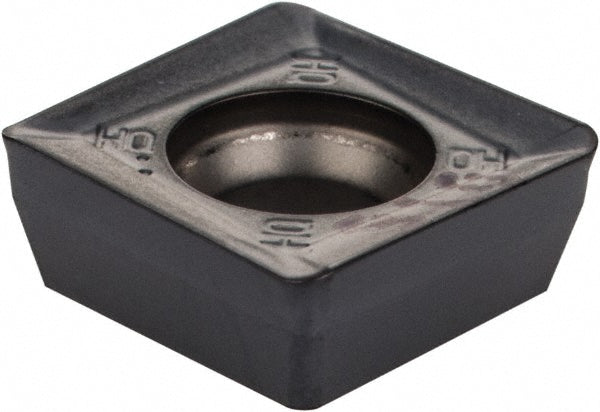

SPMT 100408TR-HQ-M Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603696

Iscar

SPMT 100408TR-HQ-M Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603696

MFR# 5603696ISO/ANSI# SPMT 100408TR-HQ-MCat# SPMT 100408TR-HQ-M IC910Series HELIQUAD

$18.19List $23.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5603696 is a SPMT 100408TR-HQ-M solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPMT 100408TR-HQ-M IC910
Chip breakerHQ
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFSB; SSB; SPK; F90SP; E90SP
Cutting edge effective length0.3701
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleSPMT
Iso codeSPMT 100408TR-HQ-M
Length0.4016
Length range0.4000 to 0.4500
Manufacturers catalog numberSPMT 100408TR-HQ-M IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1670
Thickness range0.1500 to 0.1750
Width0.4016
