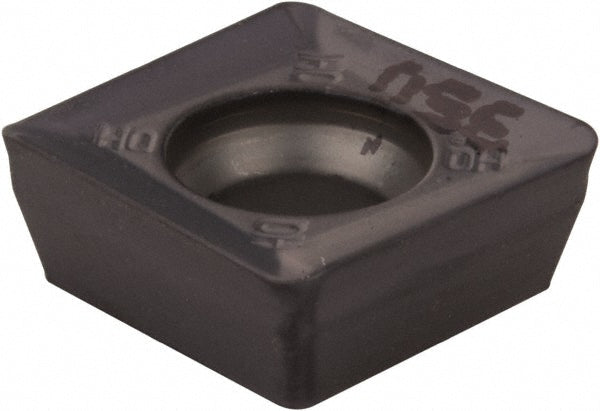

SPMT 100408TR-HQ-M Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5603697

MFR# 5603697ISO/ANSI# SPMT 100408TR-HQ-MCat# SPMT 100408TR-HQ-M IC950Series HELIQUAD

$18.19List $23.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603697 is a SPMT 100408TR-HQ-M solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeSPMT 100408TR-HQ-M IC950
Chip breakerHQ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFSB; SSB; SPK; F90SP; E90SP
Cutting edge effective length0.3701
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4020
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleSPMT
Iso codeSPMT 100408TR-HQ-M
Length0.4016
Length range0.4000 to 0.4500
Manufacturers catalog numberSPMT 100408TR-HQ-M IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1670
Thickness range0.1500 to 0.1750
Width0.4016
