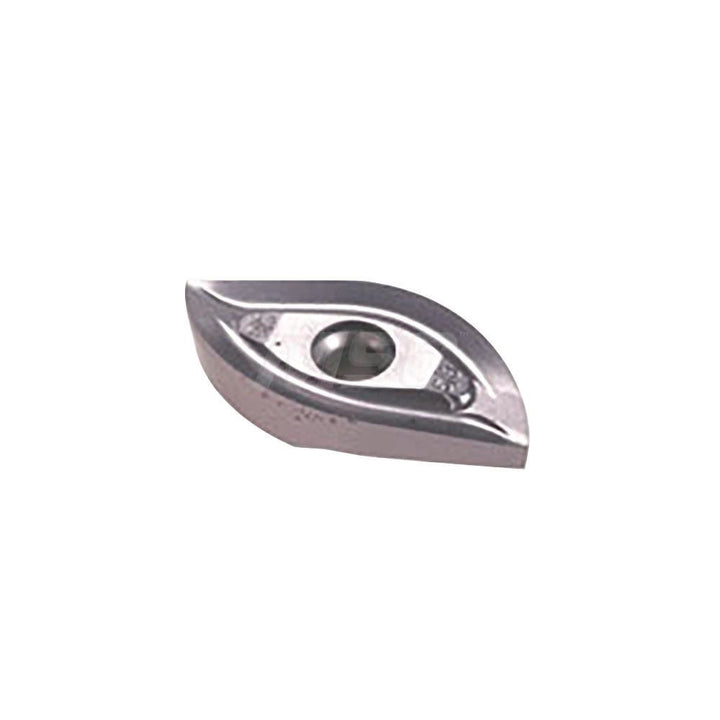

BCR D1.25-QT Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603712

Iscar

BCR D1.25-QT Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603712

MFR# 5603712ISO/ANSI# BCR D1.25-QTCat# BCR D1.25-QT IC328Series DROPMILL

$72.15List $92.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC19/32
ShapeBall Nose
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5603712 is a BCR D1.25-QT solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeBCR D1.25-QT IC328
Chip breakerQT
Coating finishTiCN
Coating processPVD
Corner radius in5/8
Cutter series compatibilityBCM
Cutting edge effective length1.1090
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in19/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size1.25
Insert size code1.25
Insert styleBCR
Iso codeBCR D1.25-QT
Length in1-7/64
Length range1.0000+
Manufacturers catalog numberBCR D1.25-QT IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut1.1090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2100
Thickness range0.2000 to 0.2200
Width in19/32
