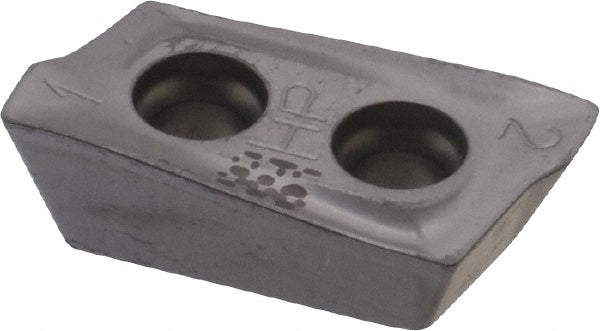

HP ADKT 2207PDTR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603722

Iscar

HP ADKT 2207PDTR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603722

MFR# 5603722ISO/ANSI# HP ADKT 2207PDTRCat# HP ADKT 2207PDTR IC928Series HELIPLUS

$28.97List $37.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603722 is a HP ADKT 2207PDTR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHP ADKT 2207PDTR IC928
Chip breakerPDTR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHP F90-22
Cutting edge effective length0.8900
Cutting edge styleT-Land
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code2207
Insert styleADKT
Iso codeHP ADKT 2207PDTR
Length1.0130
Length range1.0000+
Manufacturers catalog numberHP ADKT 2207PDTR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.8900
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2950
Thickness range0.2500 to 0.3500
Width0.1010
