Iscar

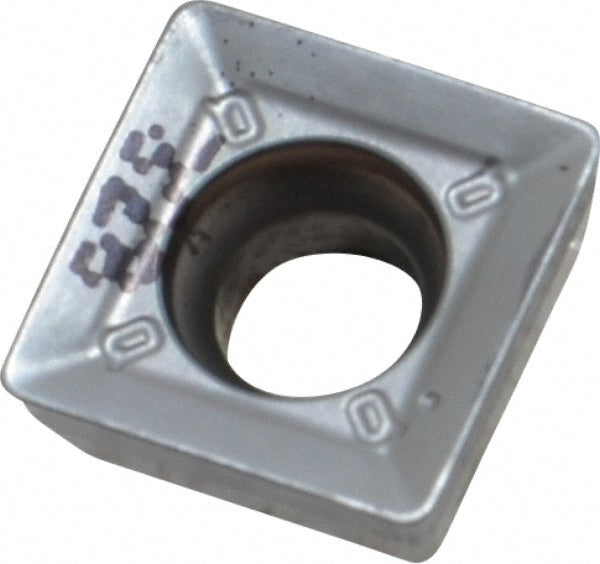

QPMT 100408PDTN-M Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603729
MFR# 5603729ISO/ANSI# QPMT 100408PDTN-MCat# QPMT 100408PDTN-M IC328Series QUAD2000
$19.91List $25.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5603729 is a QPMT 100408PDTN-M solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeQPMT 100408PDTN-M IC328
Chip breakerM
Coating finishTiCN
Coating processPVD
Corner radius0.0276
Cutter series compatibilityFDN; FSB; FST; SDN; SSB; SPK; F90SP; E90SP
Cutting edge effective length0.3799
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4070
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code100408
Insert styleQPMT
Iso codeQPMT 100408PDTN-M
Length0.4075
Length range0.4000 to 0.4500
Manufacturers catalog numberQPMT 100408PDTN-M IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3799
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1620
Thickness range0.1500 to 0.1750
Width0.4075
