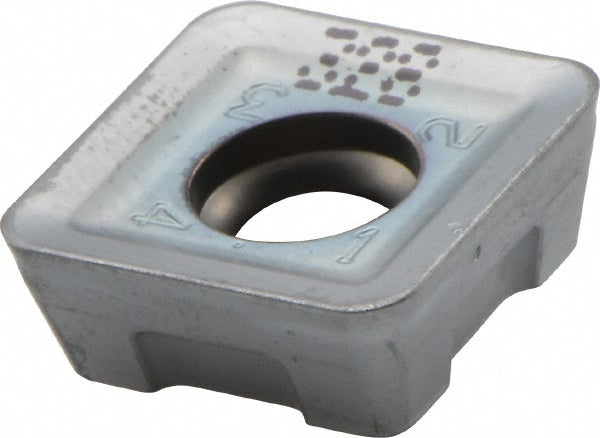

QDMT 120516PDTN-M Solid Carbide Insert, Grade IC328, TiCN - Iscar 5603737
MFR# 5603737ISO/ANSI# QDMT 120516PDTN-MCat# QDMT 120516PDTN-M IC328Series HELIQUAD
$20.39List $26.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5603737 is a QDMT 120516PDTN-M solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeQDMT 120516PDTN-M IC328
Chip breakerM
Coating finishTiCN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityFDN; FST; SDN; SSB; SDK; F90SD
Cutting edge effective length0.4370
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120516
Insert styleQDMT
Iso codeQDMT 120516PDTN-M
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberQDMT 120516PDTN-M IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width in1/2
