Iscar

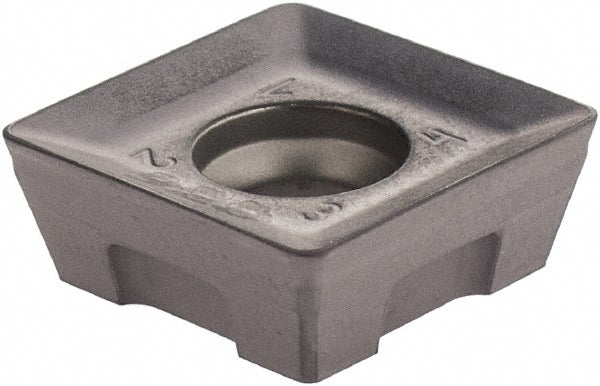

QDMT 1205PDTN-M Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603743
MFR# 5603743ISO/ANSI# QDMT 1205PDTN-MCat# QDMT 1205PDTN-M IC928Series HELIQUAD
$23.27List $29.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603743 is a QDMT 1205PDTN-M solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeQDMT 1205PDTN-M IC928
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; FST; SDN; SSB; SDK; F90SD
Cutting edge effective length0.4685
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleQDMT
Iso codeQDMT 1205PDTN-M
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberQDMT 1205PDTN-M IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width in1/2
