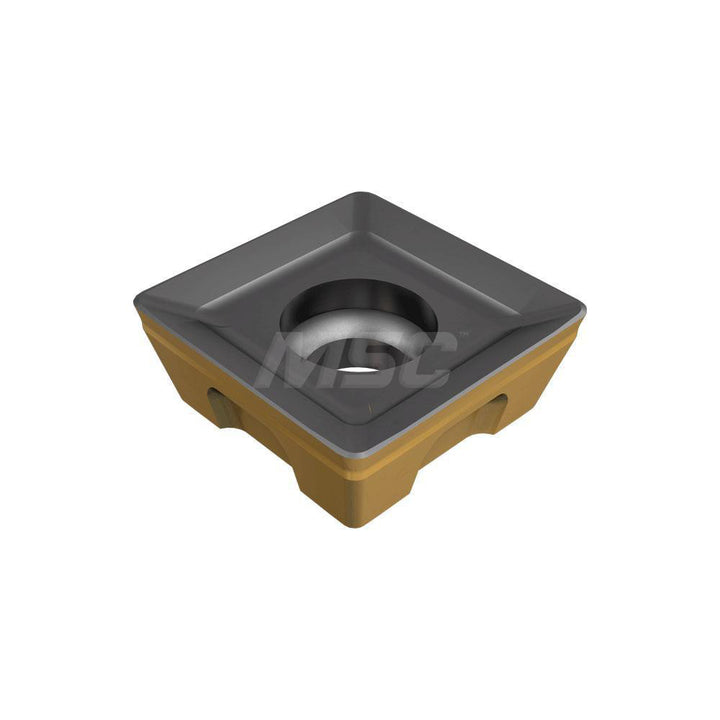

QDMT 120524PDTN-M Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603748

Iscar

QDMT 120524PDTN-M Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603748

MFR# 5603748ISO/ANSI# QDMT 120524PDTN-MCat# QDMT 120524PDTN-M IC928Series HELIQUAD

$23.27List $29.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5603748 is a QDMT 120524PDTN-M solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeQDMT 120524PDTN-M IC928
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius0.0945
Cutter series compatibilityFDN; FST; SDN; SSB; SDK; F90SD
Cutting edge effective length0.4055
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120524
Insert styleQDMT
Iso codeQDMT 120524PDTN-M
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberQDMT 120524PDTN-M IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle22
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width in1/2
