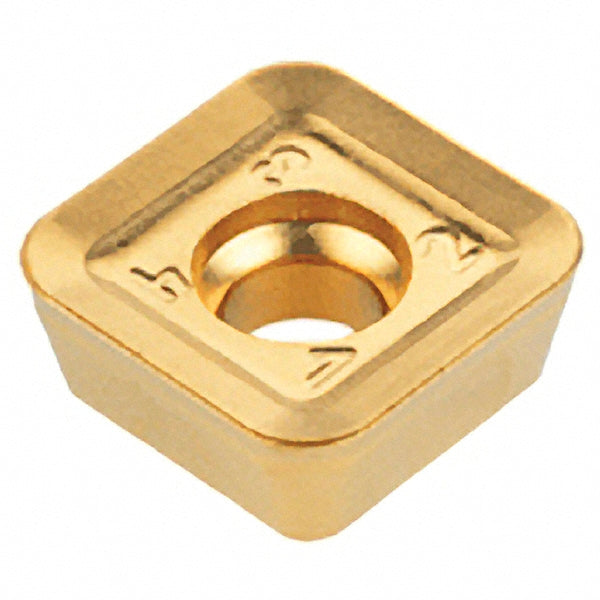

QDMT 120532PDTN-M Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603750

Iscar

QDMT 120532PDTN-M Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603750

MFR# 5603750ISO/ANSI# QDMT 120532PDTN-MCat# QDMT 120532PDTN-M IC910Series HELIQUAD

$20.39List $26.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5603750 is a QDMT 120532PDTN-M solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeQDMT 120532PDTN-M IC910
Chip breakerM
Coating finishAlTiN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityFDN; FST; SDN; SSB; SDK; F90SD
Cutting edge effective length0.3740
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120532
Insert styleQDMT
Iso codeQDMT 120532PDTN-M
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberQDMT 120532PDTN-M IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle22
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width in1/2
