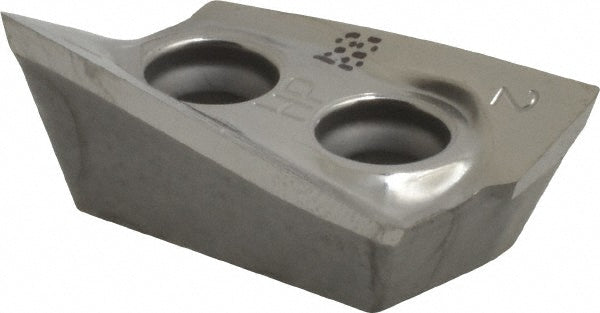

HP ADCR 220704PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5603755

Iscar

HP ADCR 220704PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5603755

MFR# 5603755ISO/ANSI# HP ADCR 220704PDFR-PCat# HP ADCR 220704PDFR-P IC28Series HELIPLUS

$56.61List $72.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5603755 is a HP ADCR 220704PDFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHP ADCR 220704PDFR-P IC28
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityHP .90-22
Cutting edge effective length0.8660
Cutting edge styleSharp
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220704
Insert styleADCR
Iso codeHP ADCR 220704PDFR-P
Length1.0910
Length range1.0000+
Manufacturers catalog numberHP ADCR 220704PDFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.8660
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.3780
Thickness range0.3500 to 0.5000
Width0.1970
