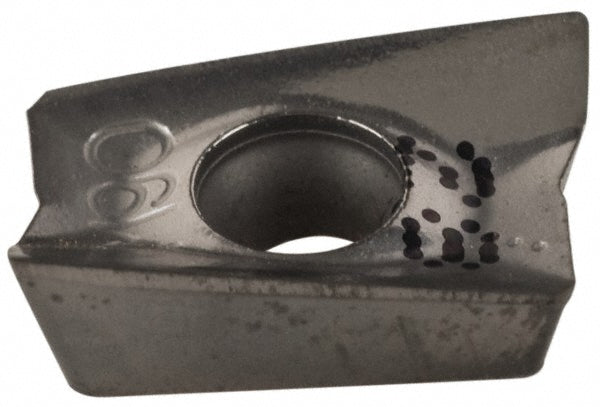

HM90 APCR 100304PDFRDP Solid Carbide Insert, Grade IC28 - Iscar 5603758

Iscar

HM90 APCR 100304PDFRDP Solid Carbide Insert, Grade IC28 - Iscar 5603758

MFR# 5603758ISO/ANSI# HM90 APCR 100304PDFRDPCat# HM90 APCR 100304PDFRDP IC28Series HELI2000

$24.13List $30.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5603758 is a HM90 APCR 100304PDFRDP solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 APCR 100304PDFRDP IC28
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.4010
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2570
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100304
Insert styleAPCR
Iso codeHM90 APCR 100304PDFRDP
Length0.4430
Length range0.4000 to 0.4500
Manufacturers catalog numberHM90 APCR 100304PDFRDP IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1520
Thickness range0.1500 to 0.1750
Width0.2570
