Iscar

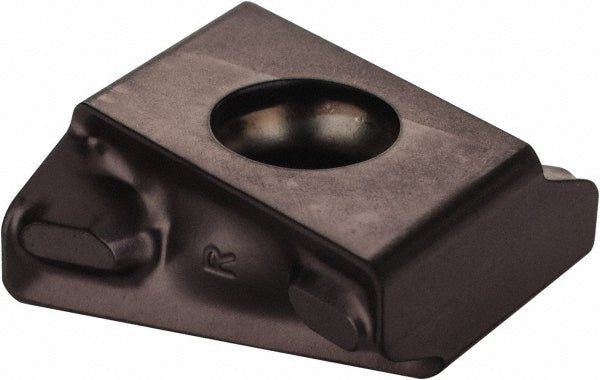

LNHT 1506PN-R HT Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603769
MFR# 5603769ISO/ANSI# LNHT 1506PN-R HTCat# LNHT 1506PN-R HT IC928Series TANGMILL
$31.38List $39.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603769 is a LNHT 1506PN-R HT solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNHT 1506PN-R HT IC928
Chip breakerHT
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySSB-LN15; F90LN
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNHT
Iso codeLNHT 1506PN-R HT
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberLNHT 1506PN-R HT IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5490
Thickness range0.5000+
Width0.2360
