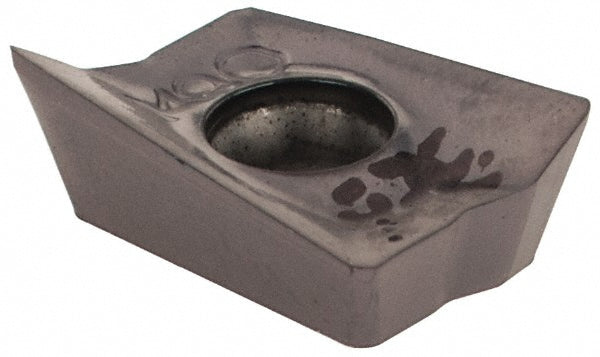

HM90 APCR 100304PDFR-P Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5603948
MFR# 5603948ISO/ANSI# HM90 APCR 100304PDFR-PCat# HM90 APCR 100304PDFR-P IC928Series HELI2000
$31.23List $39.30
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5603948 is a HM90 APCR 100304PDFR-P solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHM90 APCR 100304PDFR-P IC928
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.4010
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.2570
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100304
Insert styleAPCR
Iso codeHM90 APCR 100304PDFR-P
Length0.4430
Length range0.4000 to 0.4500
Manufacturers catalog numberHM90 APCR 100304PDFR-P IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1520
Thickness range0.1500 to 0.1750
Width0.2570
