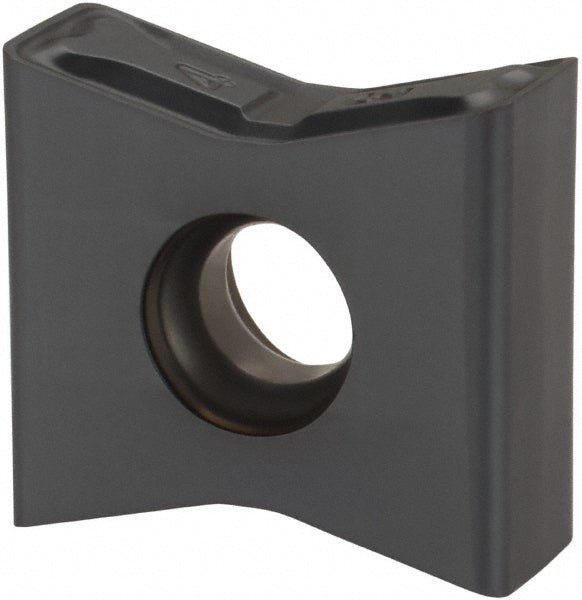

LNMT 1506PNTN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603961

Iscar

LNMT 1506PNTN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5603961

MFR# 5603961ISO/ANSI# LNMT 1506PNTNCat# LNMT 1506PNTN IC910Series TANGMILL

$24.83List $31.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5603961 is a LNMT 1506PNTN solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNMT 1506PNTN IC910
Chip breakerPNTN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; SSB; F86; F90
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNMT
Iso codeLNMT 1506PNTN
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberLNMT 1506PNTN IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.2760
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5490
Thickness range0.5000+
Width0.2360
