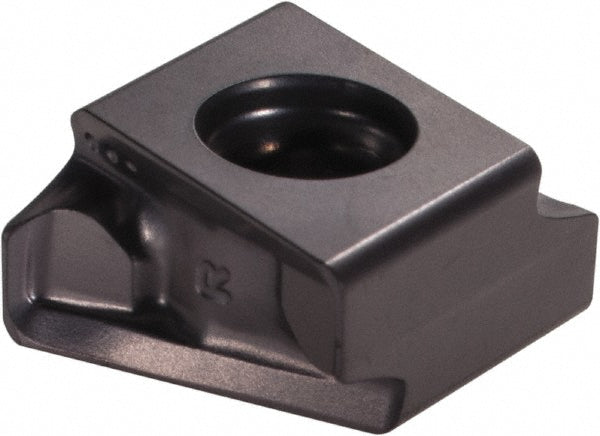

LNHT 1106PN-R HT Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604011

Iscar

LNHT 1106PN-R HT Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604011

MFR# 5604011ISO/ANSI# LNHT 1106PN-R HTCat# LNHT 1106PN-R HT IC908Series TANGMILL

$27.74List $34.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604011 is a LNHT 1106PN-R HT solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeLNHT 1106PN-R HT IC908
Chip breakerHT
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; F90LN
Cutting edge effective length0.4394
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2350
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNHT
Iso codeLNHT 1106PN-R HT
Length0.4394
Length range0.4000 to 0.4500
Manufacturers catalog numberLNHT 1106PN-R HT IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle27
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4330
Thickness range0.3500 to 0.5000
Width0.2350
